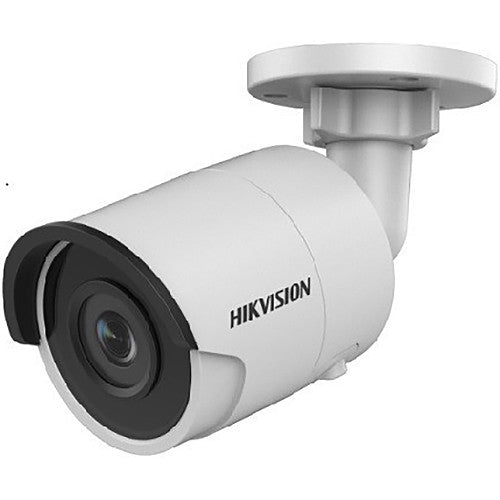

HIKVISION 2MP OUTDOOR FIXED MINI BULLET NETWORK CAMERA



Key Features

SPECIFICATIONS



Camera



Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360°



Lens



Focal length

2.8/4/6/8 mm

Aperture

F2.0

Focus

Fixed

FOV

2.8 mm, horizontal FOV: 103°, vertical FOV: 59°, diagonal FOV: 118° 4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° 6 mm, horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62° 8 mm, horizontal FOV: 43°, vertical FOV: 23°, diagonal FOV: 50°

Lens Mount

M12



IR



IR Range

Up to 30 m

Wavelength

850nm



Smart Feature-set



Smart Event

Line crossing detection, intrusion detection, face detection

Basic Event

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Linkage Method

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email

Region of Interest

1 fixed region for main stream and sub-stream






Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC/3D DNR/HLC

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Target Cropping

No

Day/Night Switch

Day/Night/Auto/Schedule



Interface



Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Video Output

No

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding

Reset Button

Yes



General



Operating Conditions

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) W

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W

Protection Level

IP67

Material

Metal

Dimensions

Camera: Φ 70 × 155.03 mm (Φ 2.8" × 6.1") Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7")

Weight

Camera: Approx. 420 g (0.9 lb.) With Package: Approx. 700 g (1.5 lb.)
